[Alibaba Object Storage Service](https://www.alibabacloud.com/product/oss) (OSS) can be used as an [origin](https://www.fastly.com/documentation/guides/getting-started/hosts/working-with-hosts) for Fastly for both public and [private content](https://www.fastly.com/documentation/guides/integrations/non-fastly-services/alibaba-object-storage-service#using-oss-with-private-objects).

## Using OSS as an origin

To use OSS as an origin, follow the steps below.

### Setting up and configuring your OSS account

1. Sign up for [Alibaba Object Storage Service](https://www.alibabacloud.com/product/oss).

2. [Create a bucket](https://www.alibabacloud.com/help/doc-detail/31885.html) to store your origin's data.

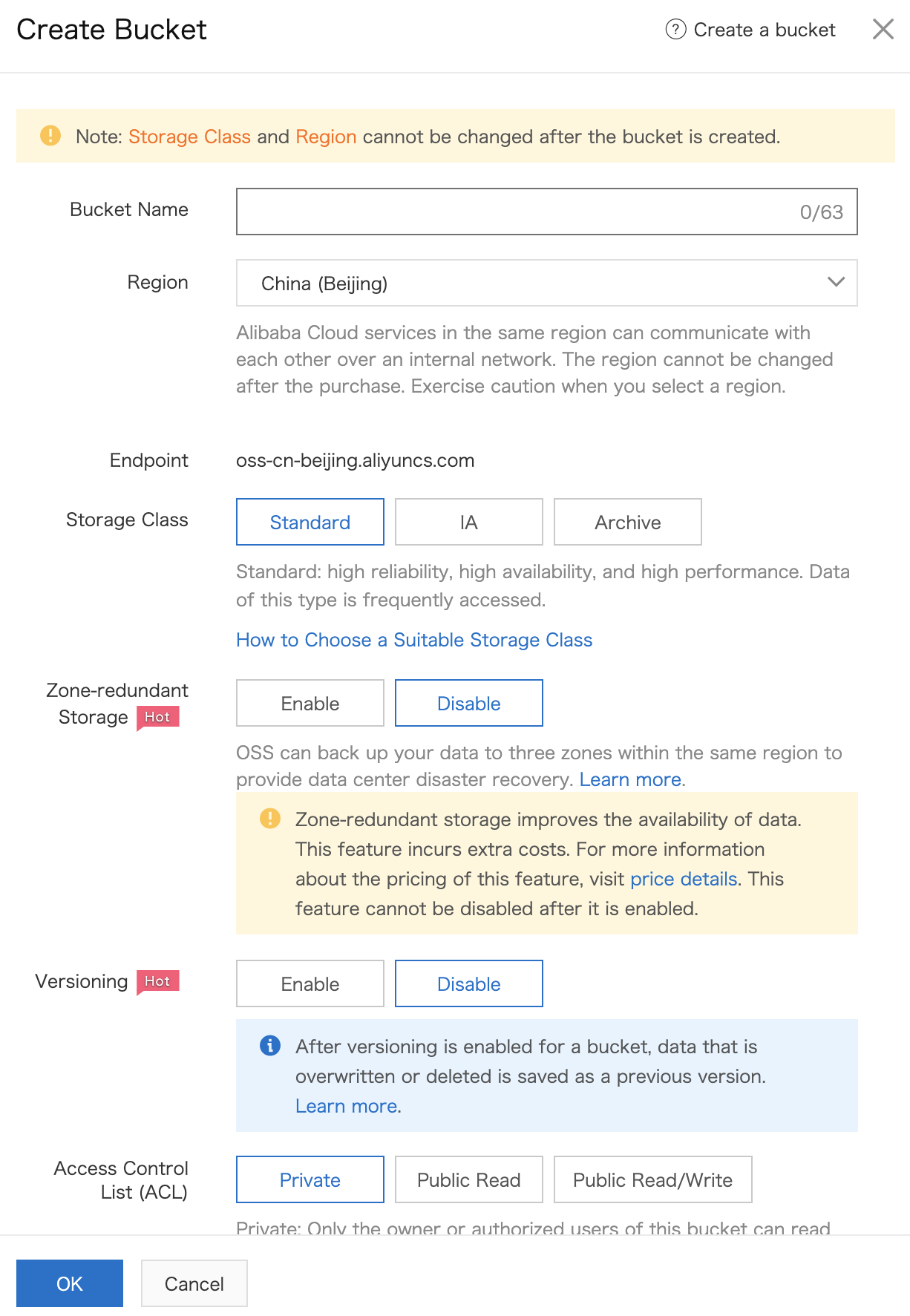

   ![Alibaba Object Storage Service New Bucket window](/img/alibaba-object-storage-service-new-bucket.png)

3. Fill out the **Create Bucket** fields as follows:
   - In the **Bucket Name** field, enter a name for your bucket. Remember the name you enter. You'll need it to connect your bucket to your Fastly service.
   - From the **Region** menu, [select a location](https://www.fastly.com/documentation/guides/concepts/shielding/#choosing-a-shield-location) to store your content. Most customers select a region close to the POP they specify for [shielding](https://www.fastly.com/documentation/guides/getting-started/hosts/shielding).
   - From the **Storage Class** options, select **Standard**.
   - From the **Access Control List (ACL)** options, select **Public Read**.
   - _(Optional)_ Select other options, such as **Server-side Encryption** and **Scheduled Backup**.

4. Click **OK**.

### Uploading files to your bucket

Once you've created your bucket, select it and then navigate to the Files tab to add files to it by clicking **Upload**.

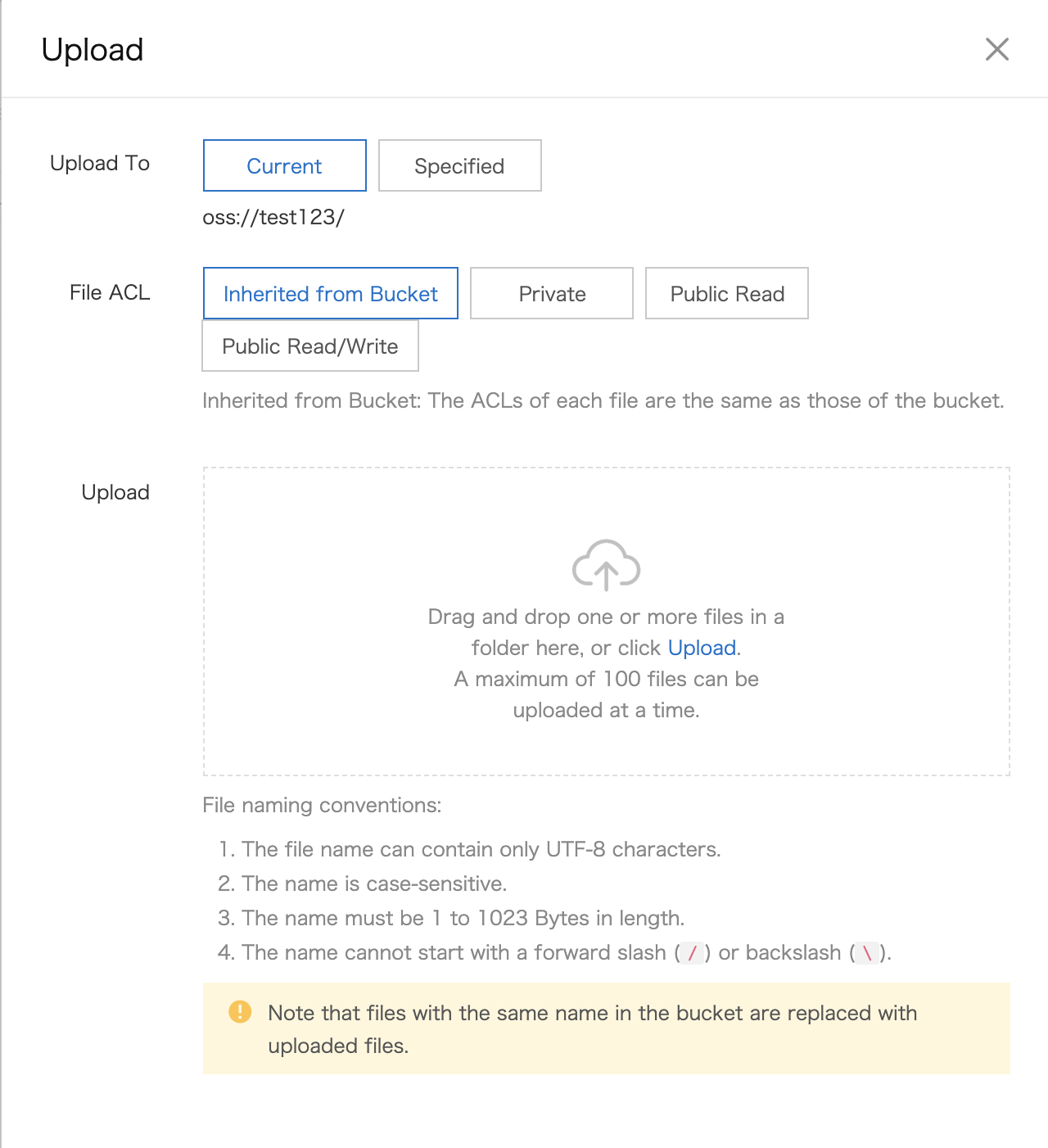

![Alibaba Object Storage Service New Bucket window](/img/alibaba-object-storage-service-add-file.png)

You can make the files externally accessible by selecting the **Public Read** option for the bucket or you can use the **Inherited from Bucket** option next to each of the files.

### Setting up Fastly to use OSS as an origin

To add your OSS bucket as an origin, follow the instructions for [working with hosts](https://www.fastly.com/documentation/guides/getting-started/hosts/working-with-hosts). You'll add specific details about your origin server.

1. On the **Origins** page, click **Create Host** and enter the appropriate address for your Host using the format `..aliyuncs.com`. For example, if your bucket name is `test123` and your region is Beijing (e.g., `oss-cn-beijing`) your hostname would be `test123.oss-cn-beijing.aliyuncs.com`. You can also find the hostname on the Bucket Overview page in the **Bucket Domain Name** area.
2. Click on the newly created Host to edit it.
3. In the **Name** field, enter a descriptive name for your service (e.g., `Alibaba Object Storage`).
4. If the **Address** field doesn't contain the `..aliyuncs.com` hostname you provided in the first step, enter it now.
5. Fill out the **Transport Layer Security (TLS)** area fields as follows:
   - Leave the **Enable TLS?** default set to **Yes** to secure the connection between Fastly and your origin.
   - Leave the **Verify certificate?** default set to **Yes**.
   - Set the **Certificate hostname** field to the same address that appears in the Address field (e.g., `test123.oss-cn-beijing.aliyuncs.com`).
   - In the **SNI hostname** field, select the checkbox to **Match the SNI hostname to the Certificate hostname**. The hostname address you entered during Host creation appears.
6. From the **Shielding** menu below the TLS area, select a Fastly POP near the Alibaba region from the list of shielding locations.
7. In the **Override host** field, enter an appropriate address for your Host (e.g., `test123.oss-cn-beijing.aliyuncs.com`). You entered this information during Host creation.

Review our [caveats of shielding](https://www.fastly.com/documentation/guides/getting-started/hosts/shielding#caveats-of-shielding) and select a [shield POP](https://www.fastly.com/documentation/guides/concepts/shielding/#choosing-a-shield-location) accordingly.

## Using OSS with private objects

To use Fastly with OSS private objects, be sure you've already made your OSS data available to Fastly by [pointing to the right OSS bucket](https://www.fastly.com/documentation/guides/integrations/non-fastly-services/alibaba-object-storage-service#setting-up-fastly-to-use-oss-as-an-origin), then follow the steps below.

### Setting up a private bucket and sub user

Setting up a private bucket is the same as setting up a public bucket, except you select the **Private** option in the **Access Control List (ACL)** area of the OSS bucket settings.

You'll need an **AccessKey ID** and **Access Key Secret**. These can be linked to your account by clicking on your avatar in the top right corner of the Alibaba Cloud Console, selecting **Access Key**, and then creating a new key. Since this key has full access to the account, we recommend following Alibaba's procedure for creating a sub user. Follow the steps below.

1. Navigate to the [Resource Access Management (RAM)](https://www.alibabacloud.com/product/ram) page.

2. Click **Users**.

3. Click **Create User**.

4. Enter an appropriate **Logon Name** and **Display Name**.

5. Select the **Programmatic Access** checkbox to enable access through the Alibaba API.

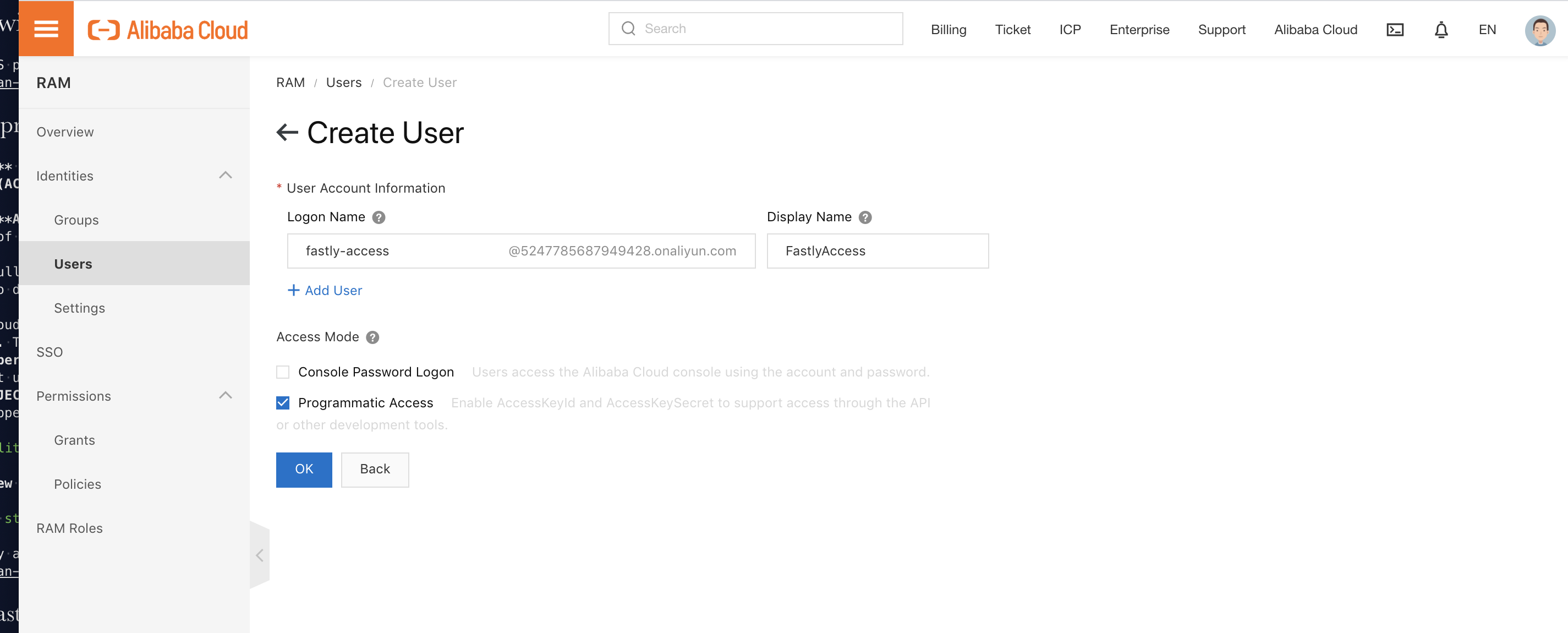

   ![Alibaba Cloud Create RAM User](/img/alibaba-object-storage-create-ram-user.png)

6. Click **OK**.

7. Copy the **AccessKeyId** and **AccessKeySecret**. You'll need these later when you're [creating an Authorization header](https://www.fastly.com/documentation/guides/integrations/non-fastly-services/alibaba-object-storage-service#creating-the-authorization-header).

8. Go back to the bucket overview, click **Files** and then click **Authorize**. You should see a list of authorized users. If this is a new bucket it should be empty.

9. Click **Authorize**, filling out the fields as follows:
   - From the **Applied To** menu, select the **Whole Bucket** option. You can select **Specified Resources**, but this may lead to unexpected errors later if you don't update the permissions with new files.
   - From the **Accounts** menu, select **RAM Users** and then use the menu to select your newly created RAM user.
   - From the **Authorized Operation** menu, select **Read Only**.
   - You can leave **Condition** blank or customize it using **IP =**, [Fastly's IP ranges](https://www.fastly.com/documentation/reference/api/utils/public-ip-list/), or setting **Access Method** to **HTTPS**.

### Setting up Fastly to use OSS private content

To use OSS private content with Fastly, you'll need to create two [headers](https://www.fastly.com/documentation/guides/full-site-delivery/headers/adding-or-modifying-headers-on-http-requests-and-responses): a Date header (required for authorization signature) and a Host header. You'll also need to add some authorization parameters.

#### Creating a Date header

1.   Log in to the [Fastly control panel](https://manage.fastly.com).

2.   From the [**Home**](https://manage.fastly.com/home) page, select the appropriate service. You can use the search box to search by ID, name, or domain.

3.   Click **Edit configuration** and then select the option to clone the active version.

4.   Click **Content**.

5. Click **Create header**.

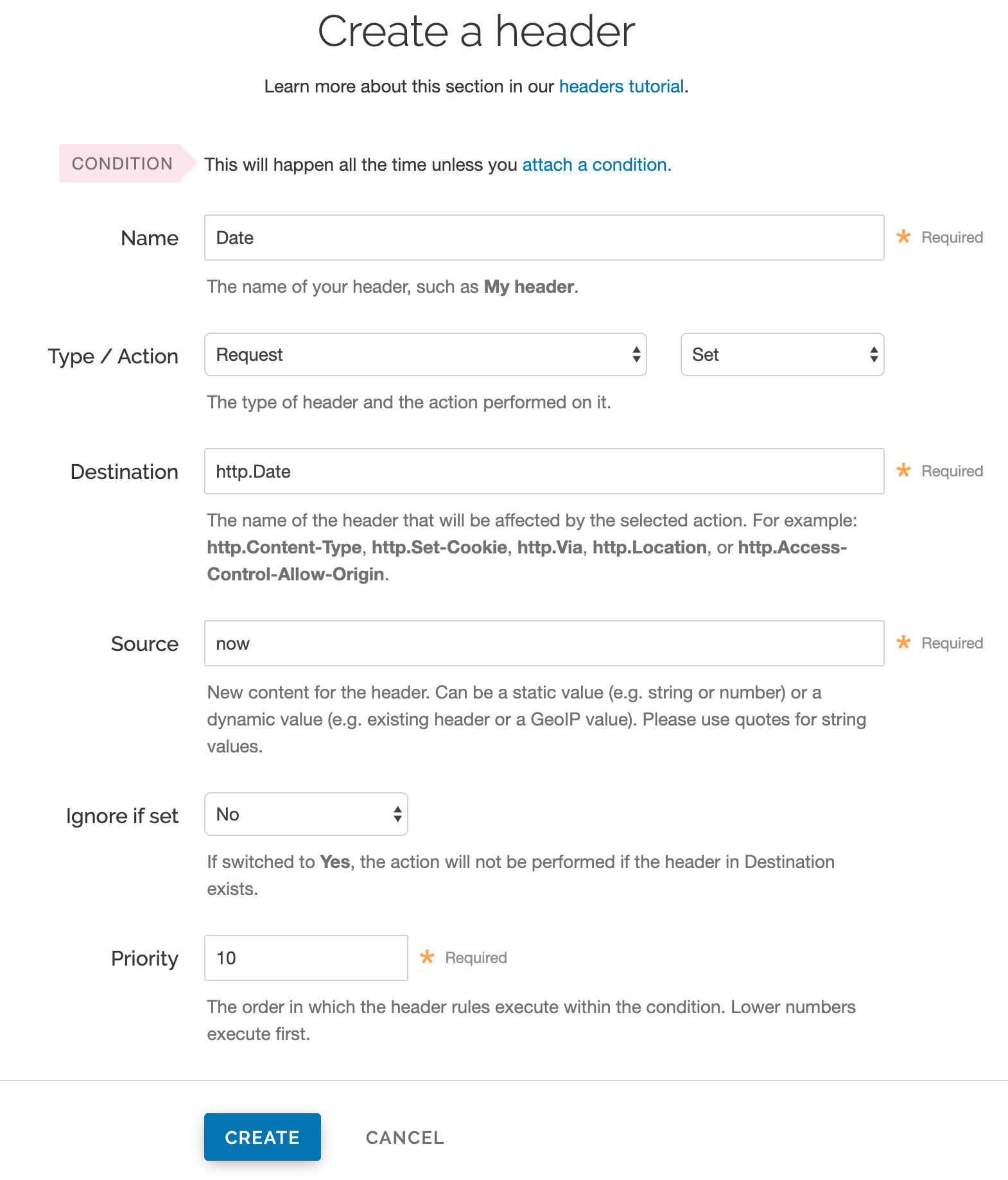

   ![creating a Date header via the new header page](/img/create-new-date-header.png)

6. Fill out the **Create a new header** fields as follows:
   - In the **Name** field, enter `Date`.
   - From the **Type** menu, select **Request**, and from the **Action** menu, select **Set**.
   - In the **Destination** field, enter `http.Date`.
   - In the **Source** field, enter `var.ali_expires`.
   - From the **Ignore if set** menu, select **No**.
   - In the **Priority** field, enter `19`.

7. Click **Create**. A new Date header appears on the Content page. You will use this later within the signature of the Authorization header.

#### Creating a Host header

1. Click **Create header**.
2. Fill out the **Create a new header** fields as follows:
   - In the **Name** field, enter `Date`.
   - From the **Type** menu, select **Request**, and from the **Action** menu, select **Set**.
   - In the **Destination** field, enter `http.Host`.
   - In the **Source** field, enter `"<your OSS domain>"`.
   - From the **Ignore if set** menu, select **No**.
   - In the **Priority** field, enter `19`.
3. Click **Create**. A new Host header appears on the Content page.

#### Creating the Authorization header

1. Click **Create header** again to create another new header.

   ![creating an Authorization header via the header page](/img/create-authorization-header-alibaba-oss.png)

2. Fill out the **Create a header** fields as follows:
   - In the **Name** field, enter `Authorization`.
   - From the **Type** menu, select **Request**, and from the **Action** menu, select **Set**.
   - In the **Destination** field, enter `url`.
   - From the **Ignore if set** menu, select **No**.
   - In the **Priority** field, enter `20`.

3. In the **Source** field, enter the Authorization header information using the following format:

   ```plain
   req.url.path "?" "OSSAccessKeyId=" "&" "Signature=" digest.hmac_sha1_base64("", if(req.method == "HEAD", "GET", req.method) LF LF LF req.http.Date LF "/" req.url.path) "&" "Expires=" var.ali_expires
   ```

     Replace ``, ``, and `` with the information you gathered before you began. For example:

   ```plain
   req.url.path "?" "OSSAccessKeyId=AOSSdecafbad" "&" "Signature=" urlencode(digest.hmac_sha1_base64("AOSSdeadbeef", if(req.method == "HEAD", "GET", req.method) LF LF LF req.http.Date LF "/test123" req.url.path)) "&" "Expires=" var.ali_expires
   ```

4. Click **Create**. A new Authorization header appears on the Content page.

5.   From the **Activate** menu, select **Activate on Production** to deploy your configuration changes.

### Setting up Fastly to use OSS private content using VCL snippets

You can also put the configuration in a [VCL Snippet](https://www.fastly.com/documentation/guides/full-site-delivery/fastly-vcl/vcl-snippets/about-vcl-snippets) with a priority of `20`.

```perl
declare local var.ali_bucket STRING;
declare local var.ali_region STRING;
declare local var.ali_access_key_id STRING;
declare local var.ali_access_key_secret STRING;
declare local var.ali_expires INTEGER;
declare local var.ali_canon STRING;
declare local var.ali_sig STRING;_

set var.ali_bucket = "test123";
set var.ali_region = "oss-cn-beijing";
set var.ali_access_key_id = "decafbad";
set var.ali_access_key_secret = "deadbeef";
set var.ali_expires  = std.atoi(now.sec);
set var.ali_expires += 60;

set req.http.Host = var.ali_bucket "." + var.ali_region + ".aliyuncs.com";
set req.http.Date = var.ali_expires;
set var.ali_canon = if(req.method == "HEAD", "GET", req.method) LF LF LF
                    req.http.Date LF "/" var.ali_bucket req.url.path;
set var.ali_sig   = digest.hmac_sha1_base64(var.alibaba_access_key_secret, var.ali_canon);

set req.url       = req.url.path;
set req.url       = querystring.set(req.url, "OSSAccessKeyId", var.alibaba_access_key_id);
set req.url       = querystring.set(req.url, "Signature",  var.ali_sig);
set req.url       = querystring.set(req.url, "Expires",  var.ali_expires);
```

> **NOTE:**
>
> This article describes how to configure an integration with a service provided by a third party. As stated in our [Terms of Service](https://www.fastly.com/terms), we do not provide direct support for non-Fastly services.
>
>
