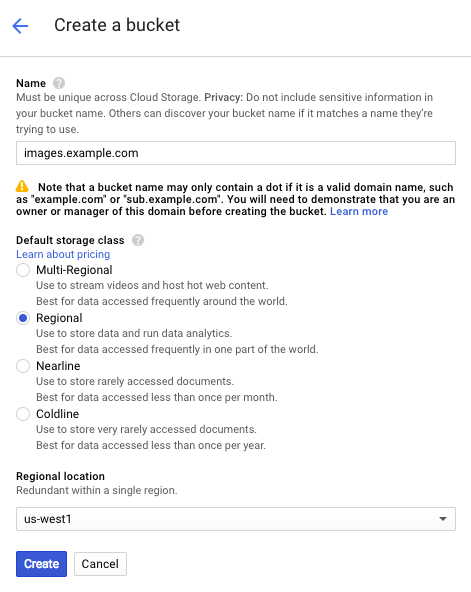

--- title: Google Cloud Storage summary: null url: >- https://www.fastly.com/documentation/guides/integrations/non-fastly-services/google-cloud-storage --- [Google Cloud Storage](https://cloud.google.com/storage/) (GCS) can be used as an [origin](/guides/getting-started/hosts/working-with-hosts) with your Fastly services once you set up and configure your GCS account and link it to a Fastly service. It can also be [configured to use private content](#using-gcs-with-private-objects). This speeds up your content delivery and reduces your origin's workload and response times with the dedicated links between Google and Fastly's POPs. ## Using GCS as an origin server To make your GCS data available through Fastly, follow the steps below. ### Setting up and configuring your GCS account 1. Sign up for [Google Cloud Storage](https://cloud.google.com/storage/docs/). 1. [Create a bucket](https://cloud.google.com/storage/docs/quickstart-console) to store your origin's data. ![Google Cloud Storage New Bucket window](/img/google-cloud-storage-new-bucket.png) 1. Fill out the **Create a bucket** fields as follows: * In the **Name** field, enter a name for your bucket (e.g., `mybucket`). You can also create a [domain-named bucket](https://cloud.google.com/storage/docs/domain-name-verification) (e.g., `images.example.com`), but you'll be required to verify your domain ownership using Google's [Search Console](https://www.google.com/webmasters/verification/), if you have not already done so. See the instructions on [Google's website](https://cloud.google.com/storage/docs/domain-name-verification). Remember the name you type. You'll need it to connect your GCS bucket to your Fastly service. * In the **Default storage class** area, select **Regional**. * From the **Regional location** menu, select a location to store your content. Most customers select a region close to the [interconnect location](#interconnect-locations) they specify for [shielding](/guides/getting-started/hosts/shielding). 1. Click **Create**. You should now add objects to your bucket and make them externally accessible by selecting the **Public link** checkbox next to each of the objects. ### Adding your GCS bucket as an origin server To add your GCS bucket as an origin server, follow the instructions for [working with hosts](/guides/getting-started/hosts/working-with-hosts). You'll add specific details about your origin server. 1. In the **Hosts** field on the **Origins** page, enter the appropriate address for your Host using the format `.storage.googleapis.com`. For example, if your bucket name is `test123`, your hostname would be `test123.storage.googleapis.com`. 1. For the initial **Edit this host** fields: * In the **Name** field, enter any descriptive name for your service (e.g., `Google Cloud Storage`). * In the **Address** field, enter the appropriate address for your Host using the format `.storage.googleapis.com`. For example, if your bucket name is `mybucket`, your hostname would be `mybucket.storage.googleapis.com`. 1. When you edit the Transport Layer Security (TLS) area information for your host: * Leave the **Enable TLS?** default set to **Yes** to secure the connection between Fastly and your origin. * In the **Certificate hostname** field, enter `storage.googleapis.com`. * Under the **SNI hostname** field, select the checkbox to **Match the SNI hostname to the Certificate hostname**. The hostname address you entered during Host creation appears. 1. From the **Shielding** menu below the TLS area, select an [interconnect location](#interconnect-locations) from the list of shielding locations. 1. In the **Override host** field, enter an appropriate address for your Host (e.g., `test123.storage.googleapis.com`). You entered this information during Host creation. ### Interconnect locations [Interconnect locations](/guides/concepts/shielding/#choosing-a-shield-location) allow you to establish direct links with Google's network edge when you choose your shielding location. By selecting one of the locations listed in our [documentation](/guides/concepts/shielding/#choosing-a-shield-location), your traffic will be carried across our interconnections with Google and you will be eligible to receive [Google's CDN partner pricing discount](https://cloud.google.com/network-connectivity/docs/cdn-interconnect#pricing). Most customers select the interconnect closest to their GCS bucket's region. Review our [caveats of shielding](/guides/getting-started/hosts/shielding#caveats-of-shielding) and select an interconnect accordingly. ### Setting the Cache-Control header for your GCS bucket By default, GCS performs its [own caching](https://cloud.google.com/storage/docs/caching) for publicly readable objects, which may complicate efforts to purge cache. To avoid potential problems, we recommend using the [gsutil](https://cloud.google.com/storage/docs/gsutil_install) command line utility to set the Cache-Control header for one or more objects in your GCS bucket: ```term copy $ gsutil setmeta -h "Cache-Control: no-store, max-age=86400" gs:///*.html ``` Replace `` in the example above with your GCS bucket's name. Note that `no-store` instructs GCS not to cache your content, while `max-age=86400` instructs Fastly to cache your content for one day. See Google's documentation on the [`setmeta` command](https://cloud.google.com/storage/docs/gsutil/commands/setmeta) for more information. ### Changing the default TTL for your GCS bucket If you want to change the default TTL for your GCS bucket, if at all, keep the following in mind: * Your GCS account controls the default TTL for your GCS content. GCS currently sets the default TTL to 3600 seconds. Changing the default TTL will not override the default setting in your GCS account. * To override the default TTL set by GCS from within the Fastly control panel, create a [new cache setting](/guides/full-site-delivery/caching/caching-best-practices) and enter the TTL there. * To override the default TTL in GCS, download the [gsutil tool](https://cloud.google.com/storage/docs/gsutil_install) and then [change the Cache-Control headers](https://cloud.google.com/storage/docs/gsutil/addlhelp/WorkingWithObjectMetadata#cache-control) to delete the default TTL or change it to an appropriate setting. ### X-Http-Method-Override header behavior GCS provides a unique functionality that allows clients to add a `X-Http-Method-Override` request header to override the request method being sent in the HTTP messages. For instance, a GET request with the `X-Http-Method-Override: HEAD` request header is treated as a HEAD request by GCS and returns a HEAD response (200 status code with an empty body). This can cause unintended caching behavior, which is a security risk. For example, if an `X-Http-Method-Override` request header is received and an unexpected response is cached. In order to minimize this risk, we strongly recommend you unset the `X-Http-Method-Override` header in the `vcl_recv` subroutine as shown below: `unset req.http.X-Http-Method-Override;` ## Using GCS with private objects To use Fastly with GCS private objects, be sure you've already made your GCS data available to Fastly by [pointing to the right GCS bucket](#using-gcs-as-an-origin-server), then follow the steps below. ### Setting up interoperable access By default, GCS authenticates requests using OAuth2, which Fastly does not support. To access private objects on GCS, your project must have [HMAC authentication](https://cloud.google.com/storage/docs/gsutil/addlhelp/CredentialTypesSupportingVariousUseCases#supported-credential-types) enabled and interoperable storage access keys (an *Access Key* and *Secret* pair) created. Do this by following the steps below. > **HINT:** To limit access to your Google Cloud account, consider creating a [service account](https://cloud.google.com/iam/docs/creating-managing-service-accounts) and then creating HMAC keys for that service account. For more information, see Google's documentation on [managing HMAC keys for service accounts](https://cloud.google.com/storage/docs/authentication/managing-hmackeys). 1. Open the Google Cloud Platform console and select the appropriate project. 1. Click **Settings**. 1. Click **Interoperability**. 1. If you have not set up interoperability before, click **Enable interoperability access**. 1. Click **Make `` your default project** for interoperable access. If that project already serves as the default project, that information appears instead. ![the interoperability tab](/img/google-cloud-storage-interoperability-tab.png) 1. Click **Create a new key**. An access key and secret code appear. ![the google cloud storage access key](/img/google-cloud-storage-access-key.png) 1. Save the access key and secret code that appear. You'll need these later when you're [creating an authorization header](#creating-an-authorization-header). ### Setting up Fastly to use GCS private content To use GCS private content with Fastly, [create two headers](/guides/full-site-delivery/headers/adding-or-modifying-headers-on-http-requests-and-responses), a Date header (required Authorization Signature) and an Authorization header. #### Creating a Date header 1. 1. 1. 1. 1. Click **Create header**. ![creating a date header via the new header page](/img/create-new-date-header.png) 1. Fill out the **Create a new header** fields as follows: * In the **Name** field, enter `Date`. * From the **Type** menu, select **Request**, and from the **Action** menu, select **Set**. * In the **Destination** field, enter `http.Date`. * In the **Source** field, enter `now`. * From the **Ignore if set** menu, select **No**. * In the **Priority** field, enter `10`. 1. Click **Create**. A new Date header appears on the Content page. You will use this later within the Signature of the Authorization header. #### Creating an Authorization header 1. Click **Create header** again to create another new header. ![creating an authorization header via the header page](/img/create-authorization-header-gcs.png) 1. Fill out the **Create a header** fields as follows: * In the **Name** field, enter `Authorization`. * From the **Type** menu, select **Request**, and from the **Action** menu, select **Set**. * In the **Destination** field, enter `http.Authorization`. * From the **Ignore if set** menu, select **No**. * In the **Priority** field, enter `20`. 1. In the **Source** field, enter the header authorization information using the following format: ```plain "AWS :" digest.hmac_sha1_base64("", if(req.method == "HEAD", "GET", req.method) LF LF LF req.http.Date LF "/" req.url.path) ``` replacing ``, ``, and `` with the information you gathered before you began. For example: ```plain "AWS GOOGQORE5WOJJHLXH6OD:" digest.hmac_sha1_base64("oQb0hdmaxFOc5UmC6F833Cde0+ghRSgsr7CCnX62", if(req.method == "HEAD", "GET", req.method) LF LF LF req.http.Date LF "/test123" req.url.path) ``` 1. Click **Create**. A new Authorization header appears on the Content page. 1. #### A detailed look at the Source field So what's going on in the Source field of the Authorization header? Here's the basic format: `AWS` It tells us the following: Element | Description ---------------------|------------------------------------------------------------------------------------------------------------------------------------------ `AWS` | A constant placed before the access key. It's always AWS. `access key` | The access key ID from your GCS developer's account. We used `GOOGQORE5WOJJHLXH6OD` in this example. `signature function` | The algorithm used to validate the key and message of the signature. We used `digest.hmac_sha1_base64(, )` in this example. `key` | The secret key ID from your GCS developer's account. We used `oQb0hdmaxFOc5UmC6F833Cde0+ghRSgsr7CCnX62` in this example. `message` | The UTF-8 encoding of the StringToSign. See the table below for a break down of each portion of the message. The message that's part of the Source field in the Authorization header takes on this basic format: `<\n>\n<\n><\n><\n>` It tells us the following: Element | Description -------------------------|--------------------------------------------------------------------------------------------------------------------------------- `HTTP-verb` | The REST verb. We use `req.method` in this example. `\n` | A newline indicator constant. It's always \n. `Content-MD5` | The content-md5 header value, used as a message integrity check. It's often left blank. We use `LF` (line feed) in this example. `Content-Type` | The content-type header value, used to specify the MIME-type. It's often left blank. We use `LF`in this example. `Date` | The date and time stamp. We use `req.http.Date` (which we created first as a separate header in the steps above). `CanonicalExtensionHeaders` | The x-amz- or x-goog- headers, which customize your GCS implementation. It's often left blank. We use `LF` in this example. `CanonicalizedResource` | Your GCS resource path name. We're concatenating GCS bucket name `"/test123"` with object path `req.url.path` in this example. > **NOTE:** ## Related content * [Working with hosts](/guides/getting-started/hosts/working-with-hosts) * [Creating request headers](/guides/full-site-delivery/headers/adding-or-modifying-headers-on-http-requests-and-responses) * [GCS public code example](/solutions/examples/google-cloud-storage-origin-public/) * [GCS private code example](/solutions/examples/google-cloud-storage-origin-private/)
