Using lists in rules

Lists are sets of data that can be referenced by multiple rules. They help centralize data management. For example, a list of prohibited countries can be applied to separate rules, such as one to track registration attempts and another to track login attempts. If the list of prohibited countries changes, only the list needs to be updated, not the individual rules.

Limitations and considerations

When working with lists, keep the following things in mind:

  • Lists are not included with the Essential platform.
  • Lists are limited to 25 per corp (account) plus 25 per site (workspace).
  • Lists can contain a maximum of 5000 items.
  • Lists support CIDR notation for IP address ranges.
  • String and wildcard lists do not support comments.

Types of lists

A list's type determines where you can use it and who manages it. There are three types:

  • Site lists (also known as Workspace lists): lists that you create for use within a single site (workspace).

  • Corp lists (also known as Account lists): lists that you create for use in both corp rules (account rules) and site rules (workspace rules). Only owners (superusers) can create, edit, and delete this list type.

  • System lists: lists provided by Fastly for use in both corp rules (account rules) and site rules (workspace rules). You cannot modify system lists.

    HINT: When creating a rule, you can view the contents of a system list that contains signals. After selecting a system list in the Conditions area of the rule builder, click the Preview list link. You cannot preview IP-based system lists.

Supported data types

Lists can consist of the following types of data:

  • Countries
  • IP addresses
  • Signals
  • Strings (e.g., agent names)
  • Wildcards

Lists with countries or IP addresses can contain comments. To add a comment to a site list (workspace list) or corp list (account list), use the pound sign # for the comment character as demonstrated below.

192.0.2.0/24
198.51.100.0/24
# example comment
203.0.113.0/24

Creating lists

You can create corp lists (account lists) and site lists (workspace lists).

Creating corp lists (account lists)

To create corp lists (account lists), complete the following steps:

  1. Next-Gen WAF control panel
  2. Fastly control panel
  1. Log in to the Next-Gen WAF control panel.
  2. From the Corp Rules menu, select Corp Lists.
  3. Click Add corp list.
  4. From the Type menu, select the type of data the list will contain.
  5. In the Name field, enter the name of the list.
  6. (Optional) In the Description (optional) field, enter a description for the list.
  7. In the Entries field, enter the items that will comprise the list. Each entry must be on its own line.
  8. Click Create corp list.

Creating site lists (workspace lists)

To create site lists (workspace lists), complete the following steps:

  1. Next-Gen WAF control panel
  2. Fastly control panel
  1. Log in to the Next-Gen WAF control panel.
  2. From the Sites menu, select a site if you have more than one site.
  3. From the Rules menu, select Site Lists.
  4. Click New list.
  5. From the Type menu, select the type of data the list will contain.
  6. In the Name field, enter the name of the list.
  7. (Optional) In the Description (optional) field, enter a description for the list.
  8. In the Entries field, enter the items that will comprise the list. Each entry must be on its own line.
  9. Click Create site list.

Updating lists

You can update corp lists (account lists) and site lists (workspace lists).

Updating corp lists (account lists)

To update corp lists (account lists), complete the following steps:

  1. Next-Gen WAF control panel
  2. Fastly control panel
  1. Log in to the Next-Gen WAF control panel.
  2. From the Corp Rules menu, select Corp Lists.
  3. Click View to the right of the list that you want to edit.
  4. Click Edit corp list.
  5. (Optional) In the Description (optional) field, enter a description for the list.
  6. In the Entries field, enter the items that will comprise the list. Each entry must be on its own line.
  7. Click Update corp list.

Updating site lists (workspace lists)

To update site lists (workspace lists), complete the following steps:

  1. Next-Gen WAF control panel
  2. Fastly control panel
  1. Log in to the Next-Gen WAF control panel.
  2. From the Sites menu, select a site if you have more than one site.
  3. From the Rules menu, select Site Lists.
  4. Click View to the right of the list that you want to edit.
  5. Click Edit site list.
  6. (Optional) In the Description (optional) field, enter a description for the list.
  7. In the Entries field, enter the items that will comprise the list. Each entry must be on its own line.
  8. Click Update site list.

Deleting lists

You can delete corp lists (account lists) and site lists (workspace lists).

Deleting corp lists (account lists)

To delete corp lists (account lists), complete the following steps:

  1. Next-Gen WAF control panel
  2. Fastly control panel
  1. Log in to the Next-Gen WAF control panel.
  2. From the Corp Rules menu, select Corp Lists.
  3. Click View to the right of the list that you want to edit.
  4. Click Remove corp list and then Delete corp list. The list is deleted, and the Corp Lists page appears.

Deleting site lists (workspace lists)

To delete site lists (workspace lists), complete the following steps:

  1. Next-Gen WAF control panel
  2. Fastly control panel
  1. Log in to the Next-Gen WAF control panel.
  2. From the Sites menu, select a site if you have more than one site.
  3. From the Rules menu, select Site Lists.
  4. Click View to the right of the list that you want to delete.
  5. Click Remove site list and then Delete site list. The list is deleted, and the Site Lists page appears.

Using lists

When creating rules, you can base rule conditions on lists by filling out the fields in the Conditions section as follows:

  1. From the Field menu, select the field that relates to the list you want to use. For example, select IP address if the relevant list is comprised of IP addresses.
  2. From the Operator menu, select Is in list or Is not in list.
  3. From the Value menu, select the appropriate list.

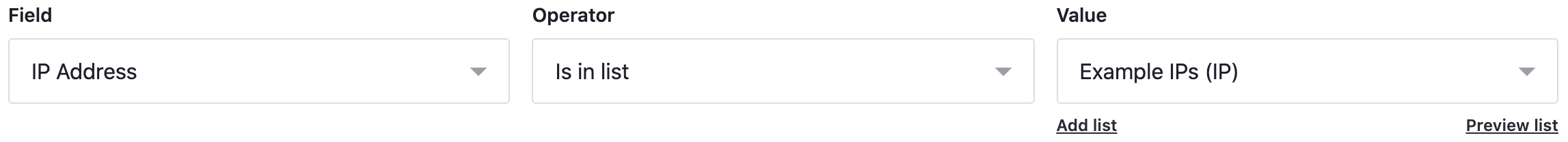

Using a list when creating a rule
